F30 Hiltra display cabinets
| Model specifications | |
|---|---|
| Article number | 999999994 |
| Dimensions external WxDxH | 605 x 550 x 1980 mm |
| Storage capacity | 130 litres |
| Adjustable shelves 30 x 490 x 410 mm | steel, 3 pieces |
| Bottom tray incl. perforated cover | steel, 1 piece |
| Capacity baking tray | 30 kg (distributed load) |
| Weight | approx. 170 kg |
| Article number | 999999994 |
| Dimensions external WxDxH | 605 x 550 x 1980 mm |
| Storage capacity | 130 litres |
| Adjustable shelves 30 x 490 x 410 mm | steel, 3 pieces |
| Bottom tray incl. perforated cover | steel, 1 piece |
| Capacity baking tray | 30 kg (distributed load) |
| Weight | approx. 170 kg |
| Options and accessories | ||
|---|---|---|
| Extra tray board 30x490x410 mm for display cabinet model 100 | 999999994 | |
| Extendable shelf 80x420x380 mm for display cabinet model 100 | 999999994 | |
| Shelf PVC 30x485x405 mm for display cabinet model 100 | 999999994 | |
| Bottom tray PVC 100x485x405 mm for display cabinet model 100 | 999999994 | |
| Extra tray board 30x490x410 mm for display cabinet model 100 | 999999994 |
| Extendable shelf 80x420x380 mm for display cabinet model 100 | 999999994 |
| Shelf PVC 30x485x405 mm for display cabinet model 100 | 999999994 |
| Bottom tray PVC 100x485x405 mm for display cabinet model 100 | 999999994 |
| Model specifications | |
|---|---|
| Article number | 999999994 |
| Dimensions external WxDxH | 1115 x 550 x 1980 mm |
| Storage capacity | 250 litres |
| Adjustable shelves 30 x 990 x 410 mm | 3 pieces |
| Bottom tray incl. perforated plate | 1 piece |
| Capacity baking tray | 50 kg (distributed load) |
| Weight | approx. 255 kg |
| Article number | 999999994 |
| Dimensions external WxDxH | 1115 x 550 x 1980 mm |
| Storage capacity | 250 litres |
| Adjustable shelves 30 x 990 x 410 mm | 3 pieces |
| Bottom tray incl. perforated plate | 1 piece |
| Capacity baking tray | 50 kg (distributed load) |
| Weight | approx. 255 kg |
| Options and accessories | ||
|---|---|---|
| Additional shelving 30x1000x410 mm for display cabinet model 150 | 999999994 | |
| Pull-out shelf 80x930x380 mm for display cabinet model 150 | 999999994 | |
| 2x PVC shelves 30x485x405 mm for display cabinet model 150 (for 1 shelf) | 999999994 | |
| 2x floor collector PVC 100x485x405 mm for disply cabinet model 150 (for 1 shelf) | 999999994 | |
| Additional shelving 30x1000x410 mm for display cabinet model 150 | 999999994 |
| Pull-out shelf 80x930x380 mm for display cabinet model 150 | 999999994 |
| 2x PVC shelves 30x485x405 mm for display cabinet model 150 (for 1 shelf) | 999999994 |
| 2x floor collector PVC 100x485x405 mm for disply cabinet model 150 (for 1 shelf) | 999999994 |
General specifications
Version 1.0 | 1-1-2020
F30 Hiltra® display cabinets
Certification:
- Tested and approved F30 according to EN-14470-1 (04-2004) and EN 1363-1 (06-2000).
- Tested and approved F10 in accordance with FM 6050 (Factory Mutual international) - Additional certification in progress.
- Standard cabinet labelling according to ISO 3864 and EN 14470-1 (04-2004) standards and 92/58/CEE 'european directive' and FM regulation.
Features:
- 30 minutes fire resistance according to the ISO 834 fire curve.
- Can be driven under by forklift/pallet truck by removing the front panel (bottom).
- Self-closing doors which can be locked open. At a temperature of approx. 43°C, the door(s) will close automatically. (Door closer(s) with temperature fuse).
- Glass in the door(s) for a good view on the stored products.
Passive safety:
- Cabinet finish melamine: corrosion-resistant with good chemical-resistant properties.
- Cupboard colour RAL735/light grey, with corners RAL1023/yellow.
- Door(s) with fire resistant glass, thickness 17 mm.
- Safety marking according to EN 14470-1 and FM 6050.
- Height adjustable shelves (per 32 mm).
- Base of the cabinet provided with a removable drip tray and perforated cover plate.
Active safety:
- Ventilation flanges Ø 100 mm for connection to external air or mechanised extraction (fan).
- Self-closing door(s).
- Door(s) equipped with 3-point locking.
- Sparkproof locking system.
- Base of cabinet fitted with adjustable feet.
Optional:
- Additional tray shelf(s).
- Extendable shelves (automatically reversible).
- PVC shelves and bottom collection tray.
- Simple connection for an exhaust system or fan filter box.

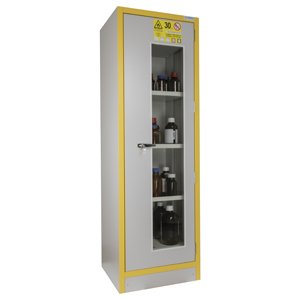

F30 Hiltra display cabinet model 100
