| Model specifications |
|---|
| Article number |
600150300 |
| Dimensions external WxDxH |
± 959 x 1016 x 2281 mm |
| Dimensions internal BxDxH |
± 725 x 925 x 2200 mm |
| Daylight size door |
± 725 x 2140 mm |
| Gauze door |
Single, lockable from galvanised steel |
| Implementation of walls and roof |
60 minutes fire resistant according to NEN 6069 |
| Weight |
± 206 kg |
| Capacity |
6x 50 liter standard cylinder |
| Locking device |
Bottles a piece (3 in a row) lockable in galvanized steel construction |
| Article number |
600150300 |
| Dimensions external WxDxH |
± 959 x 1016 x 2281 mm |
| Dimensions internal BxDxH |
± 725 x 925 x 2200 mm |
| Daylight size door |
± 725 x 2140 mm |
| Gauze door |
Single, lockable from galvanised steel |
| Implementation of walls and roof |
60 minutes fire resistant according to NEN 6069 |
| Weight |
± 206 kg |
| Capacity |
6x 50 liter standard cylinder |
| Locking device |
Bottles a piece (3 in a row) lockable in galvanized steel construction |
| Options and accessories |
|---|
| Option R: Galvanized slatted floor for GD-MS6 |
600150303 |
€ 166,00 |
| Option R: Galvanized slatted floor for GD-MS6 |
600150303 |
€ 166,00 |
(Higher quantities can be indicated in the shopping basket)
Opties
Option R: Galvanized slatted floor for GD-MS6 (600150303)
This option cannot be ordered separately
€ 166,00
(Higher quantities can be indicated in the shopping basket)

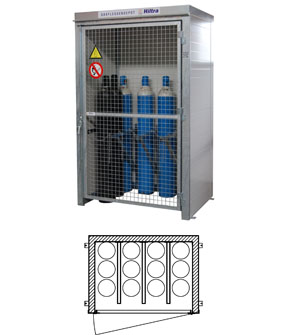

| Model specifications |
|---|
| Article number |
600150400 |
| Dimensions uitw. WxDxH |
± 2154 x 1016 x 2281 mm |
| Dimensions int. WxDxH |
± 1225 x 925 x 2200 mm |
| Daylight size door |
± 1225 x 2140 mm |
| Gauze door |
Single, lockable from galvanised steel |
| Implementation of walls and roof |
60 minutes fire resistant according to NEN 6069 |
| Weight |
± 290 kg |
| Capacity |
12x 50 liter standard cylinder |
| Locking device |
Bottles a piece (3 in a row) lockable in galvanized steel construction |
| Article number |
600150400 |
| Dimensions uitw. WxDxH |
± 2154 x 1016 x 2281 mm |
| Dimensions int. WxDxH |
± 1225 x 925 x 2200 mm |
| Daylight size door |
± 1225 x 2140 mm |
| Gauze door |
Single, lockable from galvanised steel |
| Implementation of walls and roof |
60 minutes fire resistant according to NEN 6069 |
| Weight |
± 290 kg |
| Capacity |
12x 50 liter standard cylinder |
| Locking device |
Bottles a piece (3 in a row) lockable in galvanized steel construction |

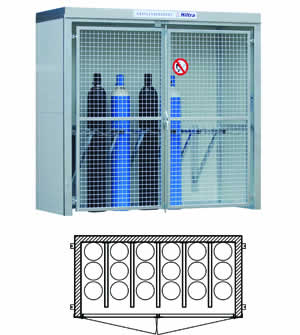

| Model specifications |
|---|
| Article number |
600150500 |
| Dimensions uitw. WxDxH |
± 2319 x 1016 x 2281 mm |
| Dimensions int. WxDxH |
± 2089 x 925 x 2200 mm |
| Daylight size door |
± 2089 x 2140 mm |
| Gauze door |
Double wing door, lockable, made of galvanised steel |
| Implementation of walls and roof |
60 minutes fire resistant according to NEN 6069 |
| Weight |
± 383 kg |
| Capacity |
18x 50 liter standard cylinder |
| Locking device |
Bottles a piece (3 in a row) fixed in galvanized steel construction |
| Article number |
600150500 |
| Dimensions uitw. WxDxH |
± 2319 x 1016 x 2281 mm |
| Dimensions int. WxDxH |
± 2089 x 925 x 2200 mm |
| Daylight size door |
± 2089 x 2140 mm |
| Gauze door |
Double wing door, lockable, made of galvanised steel |
| Implementation of walls and roof |
60 minutes fire resistant according to NEN 6069 |
| Weight |
± 383 kg |
| Capacity |
18x 50 liter standard cylinder |
| Locking device |
Bottles a piece (3 in a row) fixed in galvanized steel construction |
| Model specifications |
|---|
| Article number |
600150600 |
| Dimensions uitw. WxDxH |
± 2719 x 1016 x 2334 mm (incl. lifting eyes) |
| Dimensions inw. WxD |
± 2489 x 836 mm |
| Daylight size door |
± 2489 x 2140 mm |
| Gauze door |
Double wing door, lockable made of steel |
| Implementation of walls and roof |
60 minutes fire resistant according to NEN 6069 |
| Weight |
± 475 kg |
| Capacity |
24x 50 liter standard cylinder |
| Locking device |
Bottles a piece (3 in a row) fixed in galvanized steel construction |
| Article number |
600150600 |
| Dimensions uitw. WxDxH |
± 2719 x 1016 x 2334 mm (incl. lifting eyes) |
| Dimensions inw. WxD |
± 2489 x 836 mm |
| Daylight size door |
± 2489 x 2140 mm |
| Gauze door |
Double wing door, lockable made of steel |
| Implementation of walls and roof |
60 minutes fire resistant according to NEN 6069 |
| Weight |
± 475 kg |
| Capacity |
24x 50 liter standard cylinder |
| Locking device |
Bottles a piece (3 in a row) fixed in galvanized steel construction |

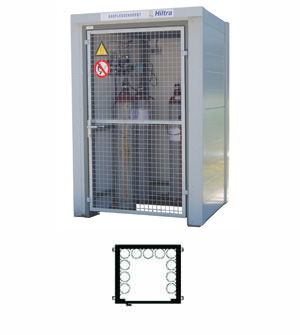

| Model specifications |
|---|
| Article number |
200150242 |
| Dimensions uitw. WxDxH |
± 1590 x 1625 x 2280 mm |
| Dimensions int. WxDxH |
± 1230 x 1270 x 2100 mm |
| Gauze door |
Single, lockable from galvanised steel |
| Implementation of walls and roof |
60 minutes fire resistant according to NEN 6069 |
| Steel construction |
with constructive strength calculation |
| Weight |
± 550 kg |
| Capacity |
25x 50 liter standard cylinder |
| Locking device |
Galvanized steel including chain for bulk securing of gas bottles |
| Article number |
200150242 |
| Dimensions uitw. WxDxH |
± 1590 x 1625 x 2280 mm |
| Dimensions int. WxDxH |
± 1230 x 1270 x 2100 mm |
| Gauze door |
Single, lockable from galvanised steel |
| Implementation of walls and roof |
60 minutes fire resistant according to NEN 6069 |
| Steel construction |
with constructive strength calculation |
| Weight |
± 550 kg |
| Capacity |
25x 50 liter standard cylinder |
| Locking device |
Galvanized steel including chain for bulk securing of gas bottles |
| Model specifications |
|---|
| Article number |
200150240 |
| Dimensions uitw. WxDxH |
± 1590 x 1625 x 2280 mm |
| Dimensions int. WxDxH |
± 1230 x 1270 x 2100 mm |
| Gauze door |
Single, lockable from galvanised steel |
| Implementation of walls and roof |
60 minutes fire resistant according to NEN 6069 |
| Steel construction |
with structural strength calculation F60 |
| Weight |
± 580 kg |
| Capacity |
25x 50 liter standard cylinder |
| Locking device |
Galvanized steel including chain for bulk securing of gas bottles |
| Article number |
200150240 |
| Dimensions uitw. WxDxH |
± 1590 x 1625 x 2280 mm |
| Dimensions int. WxDxH |
± 1230 x 1270 x 2100 mm |
| Gauze door |
Single, lockable from galvanised steel |
| Implementation of walls and roof |
60 minutes fire resistant according to NEN 6069 |
| Steel construction |
with structural strength calculation F60 |
| Weight |
± 580 kg |
| Capacity |
25x 50 liter standard cylinder |
| Locking device |
Galvanized steel including chain for bulk securing of gas bottles |
| Model specifications |
|---|
| Article number |
200150241 |
| Dimensions uitw. WxDxH |
± 1590 x 1625 x 2280 mm |
| Dimensions int. WxDxH |
± 1230 x 1270 x 2100 mm |
| Door |
Single lockable F60 fire door |
| Implementation of walls and roof |
60 minutes fire resistant according to NEN 6069 |
| Steel construction |
with structural strength calculation F60 |
| Weight |
± 665 kg |
| Capacity |
50x 50 liter standard cylinder |
| Locking device |
Galvanized steel including chain for bulk securing of gas bottles |
| Article number |
200150241 |
| Dimensions uitw. WxDxH |
± 1590 x 1625 x 2280 mm |
| Dimensions int. WxDxH |
± 1230 x 1270 x 2100 mm |
| Door |
Single lockable F60 fire door |
| Implementation of walls and roof |
60 minutes fire resistant according to NEN 6069 |
| Steel construction |
with structural strength calculation F60 |
| Weight |
± 665 kg |
| Capacity |
50x 50 liter standard cylinder |
| Locking device |
Galvanized steel including chain for bulk securing of gas bottles |

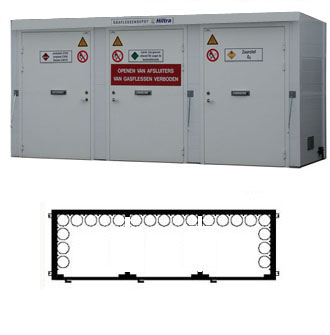

| Model specifications |
|---|
| Article number |
300150247 |
| Dimensions uitw. WxDxH |
± 3025 x 1625 x 2280 mm |
| Dimensions int. WxDxH |
± 2x 1230 x 1270 x 2100 mm |
| Gauze door |
Double wing door, lockable, made of galvanised steel |
| Implementation of walls and roof |
60 minutes fire resistant according to NEN 6069 |
| Steel construction |
with constructive strength calculation |
| Weight |
± 930 kg |
| Capacity |
50x 50 liter standard cylinder (2x 25 pieces) |
| Locking device |
Galvanized steel including chain for bulk securing of gas bottles |
| Article number |
300150247 |
| Dimensions uitw. WxDxH |
± 3025 x 1625 x 2280 mm |
| Dimensions int. WxDxH |
± 2x 1230 x 1270 x 2100 mm |
| Gauze door |
Double wing door, lockable, made of galvanised steel |
| Implementation of walls and roof |
60 minutes fire resistant according to NEN 6069 |
| Steel construction |
with constructive strength calculation |
| Weight |
± 930 kg |
| Capacity |
50x 50 liter standard cylinder (2x 25 pieces) |
| Locking device |
Galvanized steel including chain for bulk securing of gas bottles |
| Options and accessories |
|---|
| F60 fire-resistant partition wall |
300150245 |
| F60 fire-resistant partition wall |
300150245 |
(Higher quantities can be indicated in the shopping basket)
Opties
F60 fire-resistant partition wall (300150245)
This option cannot be ordered separately
(Higher quantities can be indicated in the shopping basket)
| Model specifications |
|---|
| Article number |
300150240 |
| Dimensions uitw. WxDxH |
± 3025 x 1625 x 2280 mm |
| Dimensions int. WxDxH |
± 1230/1230 x 1270 x 2100 mm |
| Roof overhang |
215 mm |
| Gauze door |
Double wing door, lockable, made of galvanised steel |
| Implementation of walls and roof |
60 minutes fire resistant according to NEN 6069 |
| Steel construction |
with structural strength calculation F60 |
| Weight |
± 980 kg |
| Capacity |
50x 50 liter standard cylinder (2x 25 pieces) |
| Locking device |
Galvanized steel including chain for bulk securing of gas bottles |
| Article number |
300150240 |
| Dimensions uitw. WxDxH |
± 3025 x 1625 x 2280 mm |
| Dimensions int. WxDxH |
± 1230/1230 x 1270 x 2100 mm |
| Roof overhang |
215 mm |
| Gauze door |
Double wing door, lockable, made of galvanised steel |
| Implementation of walls and roof |
60 minutes fire resistant according to NEN 6069 |
| Steel construction |
with structural strength calculation F60 |
| Weight |
± 980 kg |
| Capacity |
50x 50 liter standard cylinder (2x 25 pieces) |
| Locking device |
Galvanized steel including chain for bulk securing of gas bottles |
| Options and accessories |
|---|
| F60 fire-resistant partition wall |
300150245 |
| F60 fire-resistant partition wall |
300150245 |
(Higher quantities can be indicated in the shopping basket)
Opties
F60 fire-resistant partition wall (300150245)
This option cannot be ordered separately
(Higher quantities can be indicated in the shopping basket)
| Model specifications |
|---|
| Article number |
300150241 |
| Dimensions uitw. WxDxH |
± 3025 x 1625 x 2280 mm |
| Dimensions int. WxDxH |
± 1230/1230 x 1270 x 2100 mm |
| Door |
Lockable F60 fire doors |
| Implementation of walls and roof |
60 minutes fire resistant according to NEN 6069 |
| Steel construction |
with structural strength calculation F60 |
| Weight |
± 1160 kg |
| Capacity |
50x 50 liter standard cylinder (2x 25 pieces) |
| Locking device |
Galvanized steel including chain for bulk securing of gas bottles |
| Article number |
300150241 |
| Dimensions uitw. WxDxH |
± 3025 x 1625 x 2280 mm |
| Dimensions int. WxDxH |
± 1230/1230 x 1270 x 2100 mm |
| Door |
Lockable F60 fire doors |
| Implementation of walls and roof |
60 minutes fire resistant according to NEN 6069 |
| Steel construction |
with structural strength calculation F60 |
| Weight |
± 1160 kg |
| Capacity |
50x 50 liter standard cylinder (2x 25 pieces) |
| Locking device |
Galvanized steel including chain for bulk securing of gas bottles |
| Options and accessories |
|---|
| F60 fire-resistant partition wall |
300150245 |
| F60 fire-resistant partition wall |
300150245 |
(Higher quantities can be indicated in the shopping basket)
Opties
F60 fire-resistant partition wall (300150245)
This option cannot be ordered separately
(Higher quantities can be indicated in the shopping basket)
| Model specifications |
|---|
| Article number |
500150242 |
| Dimensions uitw. WxDxH |
± 4460 x 1625 x 2280 mm |
| Dimensions int. WxDxH |
± 3x 1230 x 1270 x 2100 mm |
| Mesh doors |
Single, lockable from galvanised steel |
| Implementation of walls and roof |
60 minutes fire resistant according to NEN 6069 |
| Steel construction |
with constructive strength calculation |
| Weight |
± 1310 kg |
| Capacity |
75x 50 liter standard cylinder (3x 25 pieces) |
| Locking device |
Galvanized steel including chain for bulk securing of gas bottles |
| Article number |
500150242 |
| Dimensions uitw. WxDxH |
± 4460 x 1625 x 2280 mm |
| Dimensions int. WxDxH |
± 3x 1230 x 1270 x 2100 mm |
| Mesh doors |
Single, lockable from galvanised steel |
| Implementation of walls and roof |
60 minutes fire resistant according to NEN 6069 |
| Steel construction |
with constructive strength calculation |
| Weight |
± 1310 kg |
| Capacity |
75x 50 liter standard cylinder (3x 25 pieces) |
| Locking device |
Galvanized steel including chain for bulk securing of gas bottles |
| Options and accessories |
|---|
| F60 fire-resistant partition wall |
300150245 |
| F60 fire-resistant partition wall |
300150245 |
(Higher quantities can be indicated in the shopping basket)
Opties
F60 fire-resistant partition wall (300150245)
This option cannot be ordered separately
(Higher quantities can be indicated in the shopping basket)
| Model specifications |
|---|
| Article number |
500150240 |
| Dimensions uitw. WxDxH |
± 4460 x 1625 x 2280 mm |
| Dimensions int. WxDxH |
± 1230/1230 x 1270 x 2100 mm |
| Mesh doors |
Single, lockable from galvanised steel |
| Implementation of walls and roof |
60 minutes fire resistant according to NEN 6069 |
| Steel construction |
with structural strength calculation F60 |
| Weight |
± 1385 kg |
| Capacity |
75x 50 liter standard cylinder (3x 25 pieces) |
| Locking device |
Galvanized steel including chain for bulk securing of gas bottles |
| Article number |
500150240 |
| Dimensions uitw. WxDxH |
± 4460 x 1625 x 2280 mm |
| Dimensions int. WxDxH |
± 1230/1230 x 1270 x 2100 mm |
| Mesh doors |
Single, lockable from galvanised steel |
| Implementation of walls and roof |
60 minutes fire resistant according to NEN 6069 |
| Steel construction |
with structural strength calculation F60 |
| Weight |
± 1385 kg |
| Capacity |
75x 50 liter standard cylinder (3x 25 pieces) |
| Locking device |
Galvanized steel including chain for bulk securing of gas bottles |
| Options and accessories |
|---|
| F60 fire-resistant partition wall |
300150245 |
| F60 fire-resistant partition wall |
300150245 |
(Higher quantities can be indicated in the shopping basket)
Opties
F60 fire-resistant partition wall (300150245)
This option cannot be ordered separately
(Higher quantities can be indicated in the shopping basket)
| Model specifications |
|---|
| Article number |
500150241 |
| Dimensions uitw. WxDxH |
± 4460 x 1625 x 2280 mm |
| Dimensions int. WxDxH |
± 1230/1230 x 1270 x 2100 mm |
| Doors |
Single, lockable F60 fire door |
| Implementation of walls and roof |
60 minutes fire resistant according to NEN 6069 |
| Steel construction |
with structural strength calculation F60 |
| Weight |
± 1650 kg |
| Capacity |
75x 50 liter standard cylinder (3x 25 pieces) |
| Locking device |
Galvanized steel including chain for bulk securing of gas bottles |
| Article number |
500150241 |
| Dimensions uitw. WxDxH |
± 4460 x 1625 x 2280 mm |
| Dimensions int. WxDxH |
± 1230/1230 x 1270 x 2100 mm |
| Doors |
Single, lockable F60 fire door |
| Implementation of walls and roof |
60 minutes fire resistant according to NEN 6069 |
| Steel construction |
with structural strength calculation F60 |
| Weight |
± 1650 kg |
| Capacity |
75x 50 liter standard cylinder (3x 25 pieces) |
| Locking device |
Galvanized steel including chain for bulk securing of gas bottles |
| Options and accessories |
|---|
| F60 fire-resistant partition wall |
300150245 |
| F60 fire-resistant partition wall |
300150245 |
(Higher quantities can be indicated in the shopping basket)
Opties
F60 fire-resistant partition wall (300150245)
This option cannot be ordered separately
(Higher quantities can be indicated in the shopping basket)
General specifications
Version 1.2 | 7-4-2023
MegasaverTM GD-MS models GD-MS 6 to GD-MS 24
Design:
- Designed for the storage of gas cylinders based on the guideline PGS 15:2016 version 1.0.
Main supporting structure:
- Welded, steel structure made of blasted steel coated with approx. 100 µm Acraton zinc phosphate epoxy coating in RAL 7005/mouse gray.
- Construction on threshold-free frame with anchor plates for anchoring to a foundation.
Plating:
- Walls and roof in slightly profiled galvanized sandwich panels with a core made of non-combustible and insulating rock wool.
- Exterior color; a Myrialac® primer and polyester coating in RAL 7035/gray.
- Interior color; a Myrialac® primer and polyester coating in RAL 9002/white.
- Fire resistance of the sandwich panels = 60 minutes in accordance with:
- EN 6069: 2011.
- Test standards EN 1363-1 & 1364-1 (EI-60 for walls).
- Classification standard EN 13501-2.
- Fire resistance 60 minutes determined in case of fire from outside.
Fixing device:
- Galvanized brackets with chain to secure 50 L norm cylinders per three (in depth).
Door:
- Fitted with a door made of powder-coated steel in the color RAL 7037/gray.
- Mesh door lockable with espagnolette closure equipped with handle with cylinder lock.
Ventilation:
- Optimal ventilation by applying mesh doors.
Hazard designation:
- By pictograms "smoking and open flames prohibited" and "gas cylinder storage" (other pictograms and signage available on request).
================================================================================================================
Version 1.1 | 3-2-2023
MegasaverTM GD-MS models GD-MS 6 through GD-MS 24 (CBF60)
Design/fire resistance:
- The composite structure was assessed by the accredited testing institute EFECTIS®
- Efectis report , no.: 2016-Efectis-R000221[Rev.1]/GHJ/TNL.
- Designed as an independent fire compartment for gas cylinder storage in accordance with guideline PGS 15:2016 Version 1.0.
- Fire resistance of 60 minutes determined in case of a fire from outside and a fire from inside on all (applicable for the chosen use) criteria of PGS 15:2016 Version 1.0, Regulation 3.2.9.
- Main supporting structure determined according to European and Dutch standards.
Main supporting structure:
- Welded, steel main supporting structure based on a structural strength calculation (for the chosen use) according to the Building Code and the aforementioned European and Dutch standards for steel structures:
- Steel construction made of bare steel, SA 2.5 shot blasted and coated with approx. 100 µm zinc phosphate epoxy coating in RAL 7005/mouse gray.
- Fire resistance 60 minutes on "collapse" criterion (R-60 for main supporting structures).
- Construction on threshold-free frame with anchor plates for anchoring to a foundation.
Housing:
- Roof and walls in slightly profiled galvanized sandwich panels with a core made of non-combustible and insulating rock wool.
- Isolation value [W/m2K]: 0.47 (according to EN ISO 6946)
- Sound insulation value (through air) Rw (C: Ctr): 32 dB
- Exterior color; a Myrialac® primer and polyester coating in RAL 7035/gray.
- Interior color; a Myrialac® primer and polyester coating in RAL 9002/white.
- Fire resistance of the sandwich panels = 60 minutes in accordance with: NEN 6069: 2011, Test standards EN 1363-1 & 1364-1 (EI-60 for walls), Test standards EN 1364-2 (RE-60 for ceilings/roofs), Classification standard: EN 13501-2.
Door:
- Executed with a single or double, self-closing, right-hand wing door in the short side.
- Door made of double-walled galvanized plate with a core of non-combustible and insulating material.
- Door leaf on inside and outside finished in RAL 7005/mouse gray.
- Door fitted as standard with latch, panic handle, cylinder lock and door closer including automatic Thermolock fire locking mechanism.
- Door rebates equipped with fire sealing strips so that they are automatically closed in case of fire.
- Door can be locked at an opening angle of about 90°, in case of fire the Thermolock breaks the lock and the door will close automatically in the latch bolt.
- Fire resistance of the door EI-1-60 minutes according to: Test standard: EN 1364-1, Classification standard: EN 13501-2, Insulation value W/m²K: 1.1 (according to EN 14351-1/A1:2010), Sound insulation value (through air) Rw (C: Ctr): 32 dB (according to EN ISO 140-3).
Ventilation openings:
- Ventilation and venting by diametrically placed ventilation openings inside and outside finished with galvanized vane grilles.
- Standardly equipped with flame retardant mesh and fire resistant louvers to automatically close in case of fire.
Hazard designation:
- By pictograms according to PGS 15, Ø and/or ? 200 mm, symbols: "smoking and open fire prohibited" and "gas cylinder storage" (other pictograms and signage available on request).
===============================================================================================================
Version 1.1 | 03-01-2020
MegasaverTM GD-MS models GD-MS 25 through GD-MS 75 (CBF0)
Design:
- Designed for the storage of gas cylinders based on the guideline PGS 15:2016 version 1.0.
Main supporting structure:
- Welded, steel structure made of blasted steel coated with approx. 100 µm Acraton zinc phosphate epoxy coating in RAL 7005/mouse gray.
- Construction on threshold-free frame with anchor plates for anchoring to a foundation.
Plating:
- Walls in slightly profiled galvanized sandwich panels with a core made of non-combustible and insulating rock wool.
- Exterior color; a Myrialac® primer and polyester coating in RAL 7035/gray.
- Interior color; a Myrialac® primer and polyester coating in RAL 9002/white.
- Fire resistance of the sandwich panels = 60 minutes in accordance with:
- EN 6069: 2011.
- Test standards EN 1363-1 & 1364-1 (EI-60 for walls).
- Classification standard EN 13501-2.
- Fire resistance 60 minutes determined in case of fire from outside.
Fixing device:
- Mounting device for bulk securing 50 L standard cylinders with a chain.
Door:
- Executed with a door made of galvanized mesh, mesh size 50x50 mm/wire thickness 4 mm.
- Gauze door lockable with espagnolette lock equipped with handle with cylinder lock.
Ventilation:
- Optimal ventilation by applying mesh doors.
Hazard designation:
- By pictograms "smoking and open flames prohibited" and "gas cylinder storage" (other pictograms and signage available on request).
==============================================================================================================
Version x.x | xx-xx-xxxx
MegasaverTM GD-MS models GD-MS 25 through GD-MS 75 (CBF60)
Follows.
| Normal price |
€ 4.213,00 |
| Special Price |
€ 3.791,70 (-10%) |
| Model specifications |
|---|
| Article number |
600150300 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
